ACCESS COURTS

OUTDOOR SQUASH COURT

  • Engineered for outdoor use, delivering a high-quality playing experience in all weather conditions
  • Designed to withstand winds up to 12 Beaufort, ensuring stability and safety even in extreme conditions
  • Tempered laminated glass walls with a white honeycomb pattern on front and side walls to reduce glare and enhance ball visibility
  • Clear glass back wall for unobstructed viewing by players and spectators
  • Sound-minimising glass panels suitable for installation near noise-sensitive areas such as homes, schools, and hotels
  • Specialised composite flooring with perforated panels for rapid drainage and non-slip performance when wet
  • Shock-absorbing substructure beneath the floor for enhanced player comfort and joint protection
  • Integrated overhead lighting enables night-time play
  • Modular system assembled with basic tools and a small mobile crane, allowing relocation as needed
  • Ideal for parks, rooftops, schoolyards, and public spaces

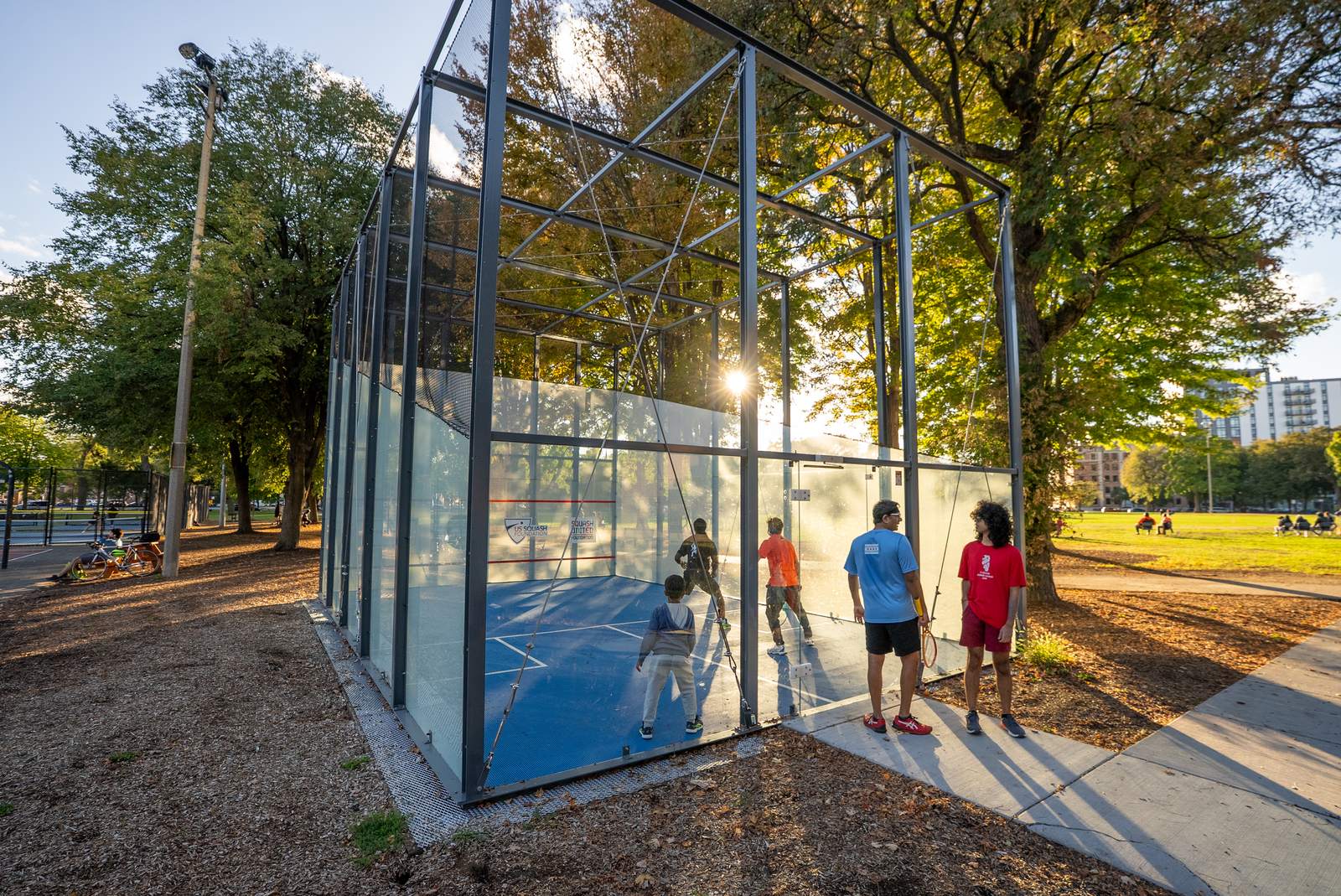

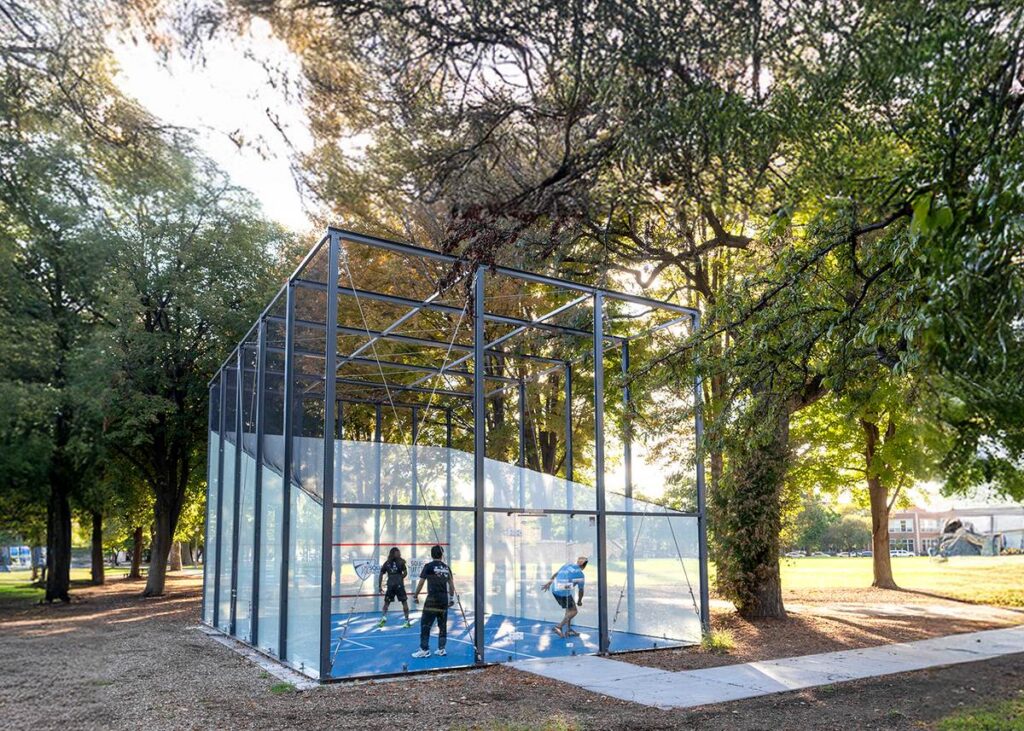

  • A boundary-breaking squash court designed to take the game outdoors

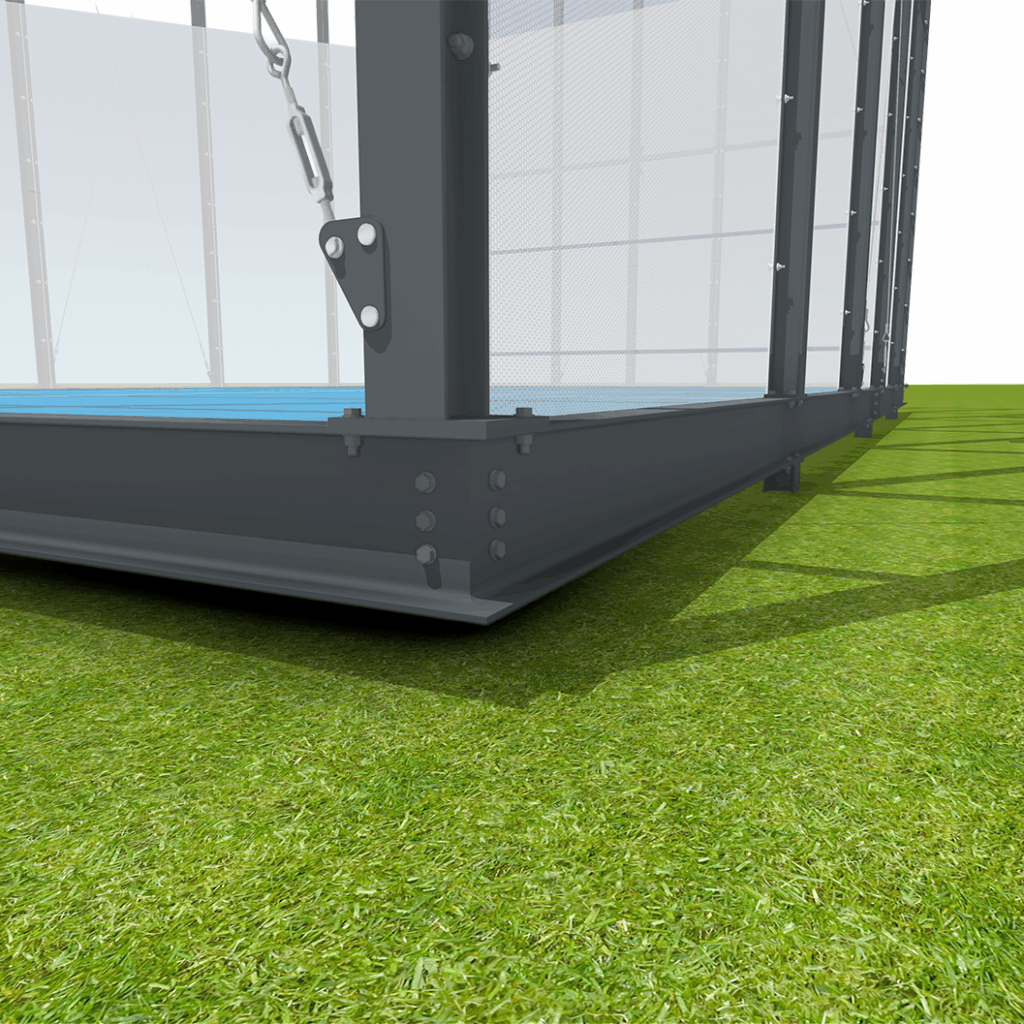

Galvanized and powder coated steel frame. Standard colour is anthracite black (RAL 7016)

Laminated tempered glass panels. Honeycomb print (50% transparency) on side & front walls.

Composite perforated blue floorpanels (RAL 5017 blue) with drainage. Sufficient grip even in wet conditions

Steel frame is installed on a concrete ring beam or pads surrounding a permeable sub-base such as tarmac or aggregate

Four 150 W LED lights

Perimeter netting above front and side walls

Red coloured squash tin, service line and floor markings

Internal: 6,4m x 9,75m x 5,6m 21’ x 32’ x 18’ External: 6,6m x 10m x 5,8m 21’9” x 32’9” x 19’9”

Approximately 9,000kg

ACCESORIES

ELEVATED FLOOR

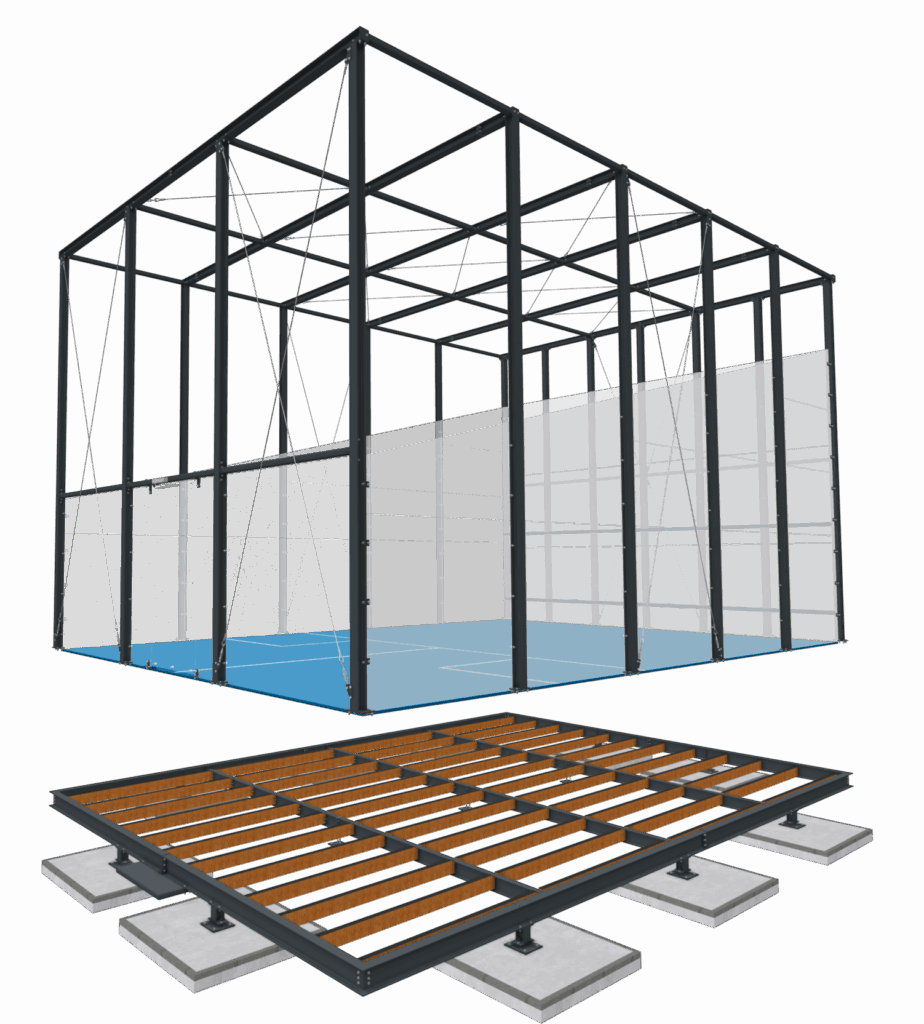

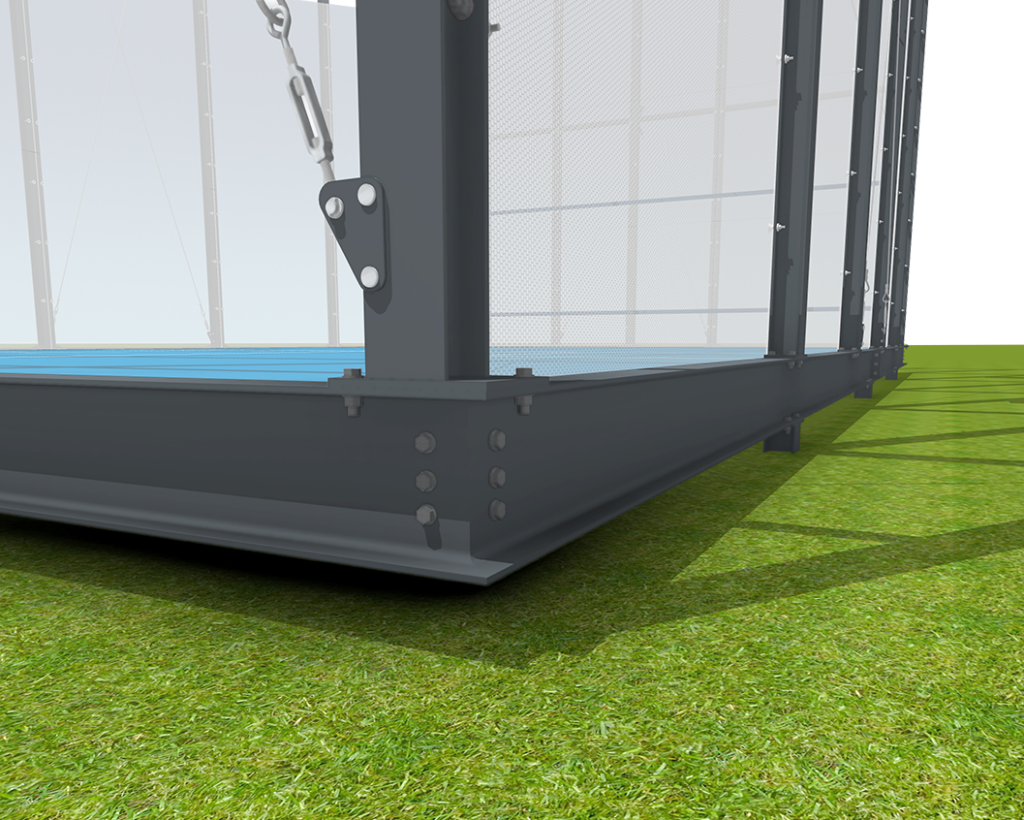

This feature is specifically designed to place the court in any location thanks to a unique steel ringbeam that rests on ten height adjustable feet, allowing the entire structure to be installed on ten prefabricated concrete slabs or pads. This makes the court easy to set up and relocate wherever needed. The elevated, permeable floor ensures rapid drainage of rainwater and natural air flow, keeping the court dry and well ventilated. The flooring features a timber substructure with recycled rubber pads. The combination of composite panels, timber joists and rubber pads ensures a comfortable and soft yet responsive playing surface, perfect for those with sensitive joints and those looking for a high paced match.
